- Maximum of 4000 lbs. (1814 kg) at a 1:1 pulley ratio
- 30RPM,200W,240V / 50HZ single phase motor
- Maintenance-free gear reduction motor
- Modular construction for ease of service
- Built in head bracket with needle bearing pulleys
- Easy adjust spring - cam limit switch system
- Specially designed heavy-duty brass nut for safety and durability
- Heavy-duty lead screw rod, more reliable and longer service life
- One-piece galvanized, lift-off cover makes for ease of service
Model# |
DimensionsL*W*H（mm） |
TravelDistance |
TravelSpeed |
Max.Safe Pull1:1pulley ratio |
PC1 |
1220*260*150 |
22"(55.9cm) |
6"per min |
4000lbs Notconsidering winch load |
PC2 |
1525*260*150 |
34"(86.4cm) |
6"per min |
4000lbs Notconsidering winch load |
PC3 |
1830*260*150 |
46"(116.8cm) |
6"per min |
4000lbs Notconsidering winch load |
PC4 |
2135*260*150 |
58"(147.3cm) |
6"per min |
4000lbs Notconsidering winch load |
Features

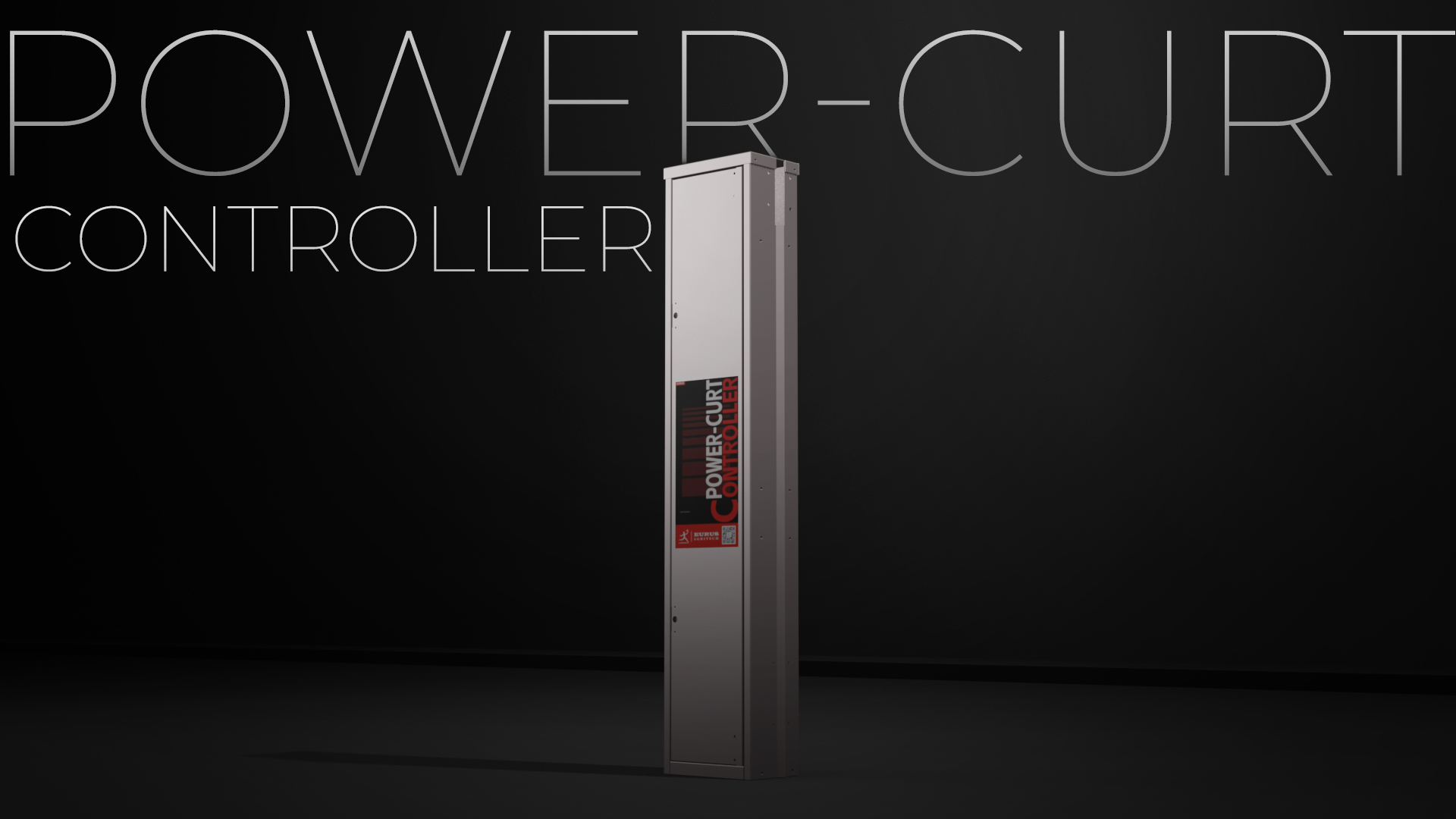

POWER - CURT
For Opening control
POWER - CURT for Curtain
POWER - CURT for Inlets
